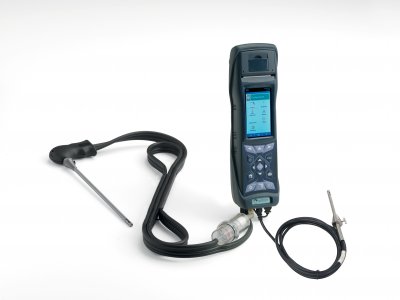

Portable Combustion Analyzer
Devised to analyse flue gases, monitor the pollutants emitted and measure environmental parameters,
"CHEMIST 500" uses two electrochemical cells that provide the oxygen and carbon monoxide values while a third cell is used to measure the pollutants NO and NOx. The most complete version can house a fourth sensor for measuring NO2, SO2 and CxHy. CO,NO,NO2 and SO2 measuring sensors are also available with a reduced measuring range, with a resolution of 0.1 ppm and better accuracy.
- 技術參數
- 產品特點
- 應用領域
- 資料下載
Main features:
• Compliant with EN 50379-1 and EN 50379-2
• Up to 4 measurement cells: O2, CO/H2, NO, NO2 and SO2
• CO measurement cell with 1 ppm resolution and built in NOX/SOX filter
• Precalibrated gas sensors, field replaceable
• Flue gas and outdoor air temperature measurement
• Draft and differential pressure measurement
• Boiler efficiency calculation
• Automatic detection of condensing boiler with efficiency calculation
• CO2, heat stack loss, excess air calculation
• Ambient CO measurement
• Gas pipe tightness test
• High accuracy (± 0.5 Pa) and resolution (0.1 Pa) draft measurement with external accessory
• 3 consecutive analysis with average calculation and result printout
• Thermal printer with paper load open/close type and no paper sensor
• Internal memory for 900 analysis
• Big colour (54 x 96 mm) graphic TFT backlit with zoom feature
• Rechargeable Lithium Ion batteries
• Battery charger type Wall Mount with USB connector type A 5V 2A
• Recharging time: 6 hrs. up to 90%
• Up to 12 hrs. autonomy of continuous operation (no printouts)
• Up to 40 analysis autonomy (with printouts)
• Additional dilution pump for CO cell auto range, measurement up to 50,000 ppm
• Automatic Autozero with sampling probe in the stack
• USB connection type B to connect PC and battery charger
• Bluetooth communication
• Self diagnostic function with alarms on gas sensors end-of-life
• 180, 300, 750 and 1000 mm flue gas sensor probes
• 300 mm flexible flue gas sensors sampling probe
• External condensation trap and dust filter
• 12 preprogrammed fuels, including pellets, wood and biogas
• 32 additional programmable fuels
• 10 different languages preprogrammed
• Neoprene holster
• PC software and video manual on USB pendrive
• User manual and calibration certificate
• Dimensions H323 x W100 x D68 mm, weight 950 g.
|
Up to 4 measuring sensors for: |
• O2
• CO/H2
• NO
• NO2
• SO2
• CO2
• CxHy
|
Other measurement: |
• Flue Gas Temperature
• Outdoor Air Temperature
• Room Temperature
• Differential Temperature
• Draft and Differential pressure
• Ambient CO
|
Calculated Measurement: |
• CO2
• NOX
• Boiler efficiency, condensing included
• Stack loss
• Excess air
|
Additional features: |
• Gas piping tightness test
• High accuracy draft measurement
• Firmware updates available
Boiler plant
Environment monitoring
Power plant
Cement plant
